Project Description

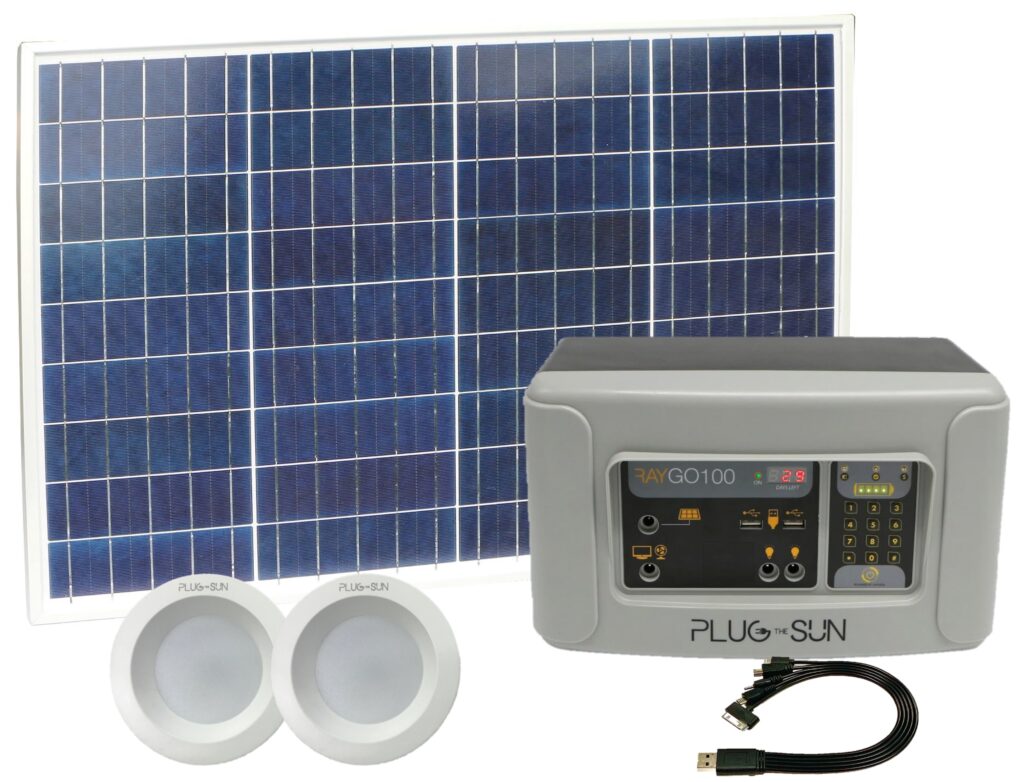

Portable Solar Home System
RAYGO 100 Solar Home System is the perfect solution for your everyday energy needs.
RAYGO 100 Solar Home System offers clean DC compact solar power for your energy need: lighting your room, your home, recharge your phone and run small DC appliances.
Technical Specification
| Solar PV | |
|---|---|
| PV Power | 25 Wp |
| PV Technology | Polycrystalline Silicon |
| Battery | |
|---|---|
| Battery Technology | LiFePO4 |
| Battery Capacity | 6.8 Ah (87Wh) |
| Battery Voltage | 12.8 V |
| Battery Life-Cycles | 2000 Cycles (90% DoD) |
| Features | |
|---|---|
| Battery Status LED | Yes (4 levels) |
| Battery Equalization | Yes |
| System | |
|---|---|
| Output Port | 2x 5V USB 4x 12V DC light plug 5.5/2.5 1x 12V DC TV plug 5.5/2.5 |
| Dimensions (LxWxH) | 286x171x125.3 mm |
| Weight | 2 kg |
| Working Temp. | 0 ~ 40°C |
| Certifications and Marks | |
|---|---|
| System | IEC62509, IEC62109, EN61000 |
| Battery | IEC62133, UN38.3 |
| Solar PV Panel | IEC61215 |
| Marks | CE |
| LED Light | |
|---|---|
| Power | 2x 2W LED lights |
| Luminous Efficacy | >100 lm/W |
| Luminosity levels | 2 light levels |
| Cable | 5mt (0.5 mmsq low power loss) |
WHAT CAN YOU DO WITH YOUR RAYGO 100?
Run time after a typical day of solar charging (assuming 5kWh/m2/day), when appliances used alone
 |
Light set at full luminosity |
17 hours |
 |
Smart Phone* |
17 recharges |
 |
Mobile Phone* |
26 recharges |
 |
Small Fan up to 16” (only DC appliance) * |
10 hours |
 |
TV (only DC appliance) * |
5 hours |
 |
Portable radio * |
190 hours |
Run time after a typical day of solar charging (assuming 5kWh/m2/day), when used in combination
| |
Light set at full luminosity |
12 hours |
| |
Smart Phone* |
3 recharges |
| |
Mobile Phone* |
3 recharges |
*: Smart phone and Mobile phone not included in the RAYGO 100 kit. Fan, TV and Radio, however they are optional appliances.

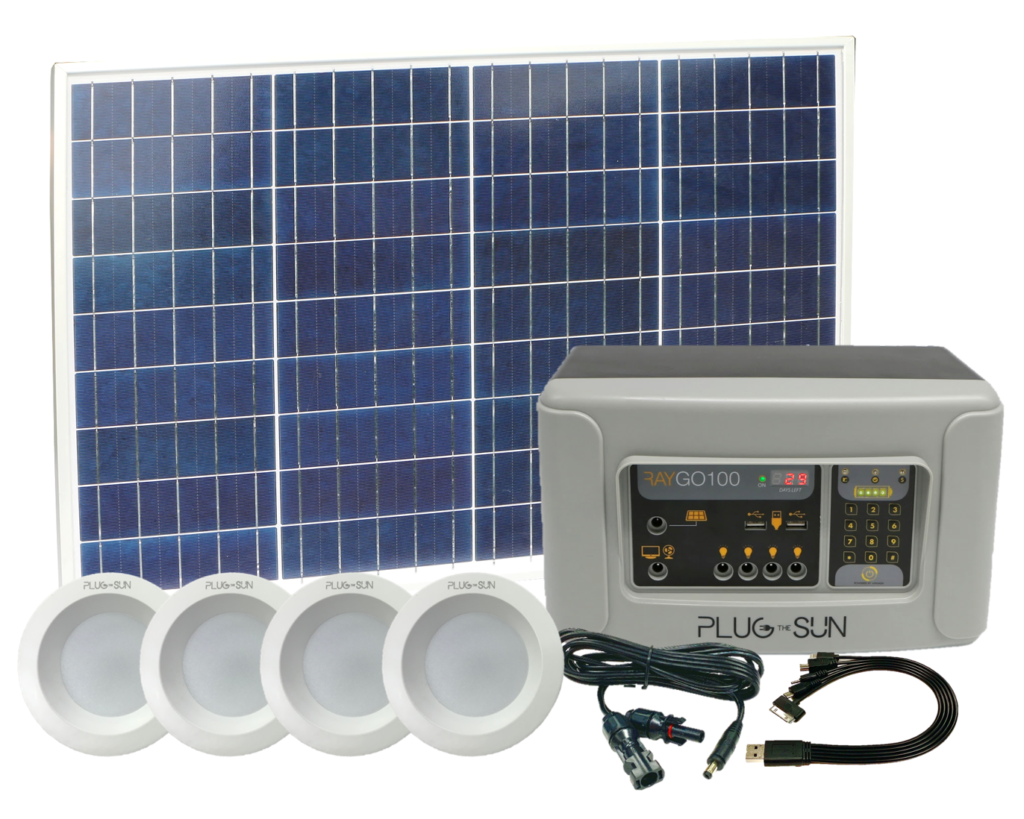

What is included in the Kit
RAYGO 100 power unit
PAYG (Pay As You Go)
PV Panel
USB charging cable
4x LED Lights
Optional
TV
Radio
Torch
Fan
